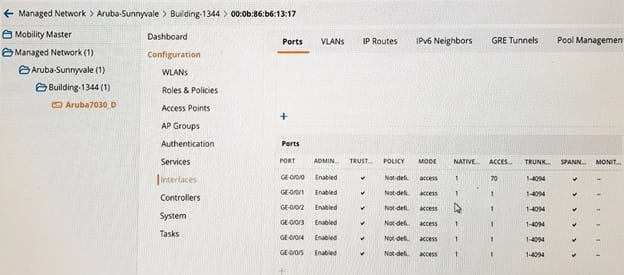

Refer to the exhibit.

Under which AirWave Management Platform (AMP) section should an administrator navigate to see the connection status between the AMP and managed device shown in the exhibit?

A. Folders

B. Aps/Devices

C. VisualRF

D. Device Setup

An administrator troubleshoots a roaming problem where a user loses connectivity to the network during the roaming process. To help troubleshooting this problem, which device or devices in a wireless network initiates the roaming process?

A. Both the client and the controller

B. The AP

C. The Client

D. The Controller

An administrator deploys an Aruba wireless solution comprised of:

-a pair of Mobility Masters (MMs)

-multiple Mobility Controllers (MCs) and virtual Mobility Controllers (VMCs)

-an AirWave server

-a ClearPass server

The Aruba Mobility solution runs ArubaOS 8.X.

Which component in this environment globally defines and deploys VLANs for wireless users?

A. Mobility Controller or Virtual Mobility Controller

B. AirWave server

C. Mobility Master

D. ClearPass server

An administrator creates a User Rule for role derivation on the Mobility Master (MM). Which client information can an administrator specify to identify that a particular user should be assigned a different role from the initial role?

A. IP address

B. VLAN

C. MAC address

D. Profiling information

Which IEEE standard should user devices support to implement Fast BSS Transition when a network implements wireless roaming (mobility)?

A. 802.11r

B. 802.11f

C. 801.11m

D. 802.11i

An administrator purchases a pair of Mobility Masters (MM) and wants to deploy 16 Virtual Mobility Controllers (VMCs). What is the minimum number of clusters that the administrator needs to implement to support the number of VMCs?

A. 1

B. 2

C. 4

D. 8

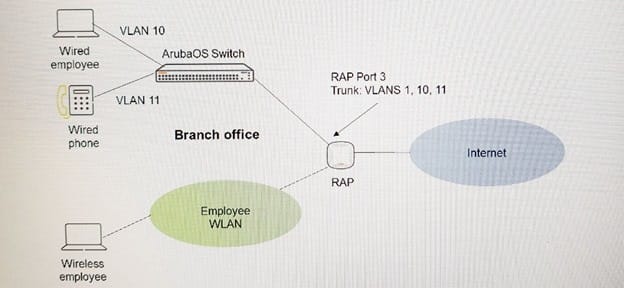

An administrator supports a RAP to a branch office. Employees at the branch office connect to an employee SSID that allows for split tunneling of the employee traffic. The RAP initially connects to the corporate office controller, but later loses connectivity to it.

Which operating mode should the administrator configure for a secondary SSID to be advertised during the loss of connectivity?

A. Standard

B. Persistent

C. Always

D. Backup

An administrator wants to implement a cluster of Aruba Mobility Controllers (MCs). Which guideline should be followed?

A. Implement Virtual Mobility Controllers and Mobility Controllers in the cluster to provide scalability.

B. Verify that all the controllers run the same release of software.

C. Purchase a cluster license to enable clustering

D. Implement High Availability (HA) AP Fast Failover for redundancy.

An administrator implements a cluster of four Aruba Mobility Controllers (MCs) managed by a Mobility Master (MM). An AP Group is configured with two VAPs and deployed to an AP that will connect to the cluster. Each AP contains two radios.

How many GRE tunnels will be built from the AP to the Active AP Anchor Controller (A-AAC)?

A. 2

B. 4

C. 5

D. 8

An administrator implements per-user tunneled node that involves ArubaOS-Switches and Aruba Mobility Controllers (MCs). What always happens when a wired client connects to the network?

A. All switch traffic is tunneled to the controller.

B. The switch performs user authentication.

C. The tunnel fails unless VMCs are used.

D. Wired users map to an AAA profile on the controller.
