Refer to the exhibit

An administrator is setting up an MPLS Layer 2 VPN between customer Sites 1 and 2 and is defining the pseudo wire (PW) ID for this purpose. How should the PW IDs and router values be configured?

A. Set the PW ID to a different value on PE-1 and PE-2 The value on each router must match the label advertised by the peer for its loopback address.

B. Set the PW ID to a different value on PE-1 and PE-2 Also use a different value from other PWs on these routers.

C. Set the PW ID to the same value on PE-1 and PE-2. Use a different value from other PWs on these routers.

D. Set the PW ID to the same value on PE-1 and PE-2. The value on each router must match the S-VLAN ID for the associated service instance.

How does a non-hierarchical VPLS Martini solution prevent looping for broadcasts and multicasts?

A. PEs use a hub and spoke topology, relying on the hub to distribute broadcasts and multicasts.

B. PEs use split horizon operations, never forwarding a packet received on a pseudo wire (PW) over another PW.

C. PEs implement Shortest Path Bridging (SPB) VLAN Mode (SPBV).

D. PEs implement a version of Spanning Tree Protocol (STP). preferably Multiple STP (MSTP).

A large data center needs to extend its Layer 2 connectivity and isolate tenants who might use the same VLAN IDs Which technology accomplishes this goal?

A. SPBM

B. Data Center Bridging (DCB)

C. Multi-VPN-Instance CE (MCE)

D. TRILL

An HP Comware switch supports FCoE in Fibre Channel Forwarder (FCF) mode. A switch interface Ten1/0/1 connects to a server FCoE Converged Network Adapter (CNA). The CNA will carry normal data traffic and storage traffic for VSAN 2. which is associated with VLAN 20. How does the administrator assign FCoE traffic for this CNA to VSAN 2?

A. by accessing the VSAN 2 configuration view and specifying Ten1/0/1 as a member port of the VSAN

B. by accessing the VLAN 20 configuration view and specifying Ten1/0/1 as a member port of the VLAN

C. by setting Ten1/0/1 to FCoE mode and specifying VSAN 2 as the port access VSAN

D. by binding a VFC interface to Ten 1/0/1 and specifying VSAN 2 as the VFC interface trunk VSAN

Refer to the exhibit

useOSPF

have established an MPLS domain.

use LDP.

have established a Martini Layer 2 VPN between Sites 1 and 2

VPN traffic is using the link between PE-1 and P-4, and this link fails.

What happens to the VPN traffic?

A. It is disrupted for this particular site-to-site connection until the link is fixed

B. It fails over to the link between PE-1 and P-5 only //administrators created a backup virtual circuit (VC) from PE-1 to

C. It fails over to the link between PE-1 and P-5 only if administrators created two virtual circuits (VCs) between PE-1

D. and PE-2.

E. It fails over to the link between PE-1 and P-5. The failover is automatically handled by MPLS. LDP, and OSPF

Which advantage does a VPLS solution offer over a simple MPLS Layer 2 VPN solution?

A. provides data integrity and privacy for the company traffic

B. provides MAC learning for VLANs extended across the MPLS region

C. allows for a hub and spoke pseudo wire (PW) configuration instead of a full mesh configuration

D. extends Layer 2 connectivity across an IP network that uses non-Ethernet media

Refer to the exhibit PE-1 receives an IP packet that is destined to 10 1.10 10 and does not have an MPLS header. What does PE-1 do?

A. drops the packet

B. adds an MPLS header without a label and forwards the packet to 10.1.1.1 on VLAN 17

C. adds an MPLS header with label 1150 and forwards the packet to 10.1.1.1 on VLAN 17

D. forwards the packet to 10.1.1.1 on VLAN 17 without an MPLS header

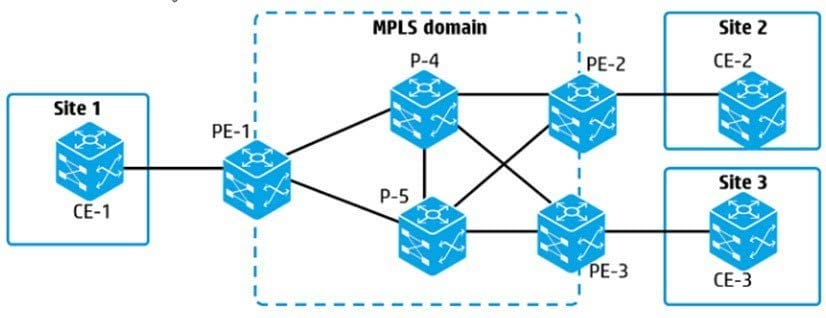

Refer to the exhibit

An administrator is configuring an MPLS VPLS Martini solution on PE-1. The VPLS solution should connect customer A sites 1, 2, and 3 Where should the administrator specify the LDP peers and pseudo wire (PW) label for the PWs?

A. in service instances on interfaces Ten2/0/1 and Ten2/0/2

B. in a Virtual Switch Instance (VSI) for customer A

C. in a service instance on interface G1/0/1

D. in a global cross-connect group

Refer to the exhibit A VSAN is being set up on an HP Comware switch that will connect to server Converged Network Adapters (CNAs) and storage systems The administrator is checking the configuration of the VSAN with display commands The exhibit shows the results.

What is a potential issue?

A. The current zoning configuration does not permit any communication.

B. The fabric name has been set to the same ID as the switch WWN. which causes conflicts.

C. The distribute mode for zones has been set to active only, which can cause issues with redundancy.

D. The domain ID has been set manually to a preferred ID, but this switch does not have the highest priority

A customer is deciding whether to purchase a switch in the HP 5900AF Series or the HP 5900CP series. Which need requires the customer to choose the HP 5900CP switch instead of the 5900AF switch?

A. enhanced visibility for VM-to-VM traffic and Ethernet Virtual Bridge (EVB) solutions

B. OpenFlow support and compatibility with HP software-defined networking (SDN) solutions

C. LAN/SAN convergence support and native FC port connections

D. support of 10GbE to the server edge and 40GbE uplinks
