BIG-IP v10.x LTM Essentials V10.x: F50-531

A site wishes to perform source address translation on packets arriving from the Internet for clients using some pools but not others. The determination is not based on the client's IP address, but on the pool they are load balanced to. What could best accomplish this goal?

A. A SNAT for all addresses could be defined, and then disable the SNAT processing for select pools.

B. The decision to perform source address translation is always based on VLAN. Thus, the goal cannot be achieved.

C. For each virtual server, regardless their default load balancing pools, association with SNAT pools could vary dependent upon need.

D. The decision to perform source address translation is always based on a client's address (or network). Thus, this goal cannot be achieved.

When can a single virtual server be associated with multiple profiles?

A. Never. Each virtual server has a maximum of one profile.

B. Often. Profiles work on different layers and combining profiles is common.

C. Rarely. One combination, using both the TCP and HTTP profile does occur, but it is the exception.

D. Unlimited. Profiles can work together in any combination to ensure that all traffic types are supported in a given virtual server.

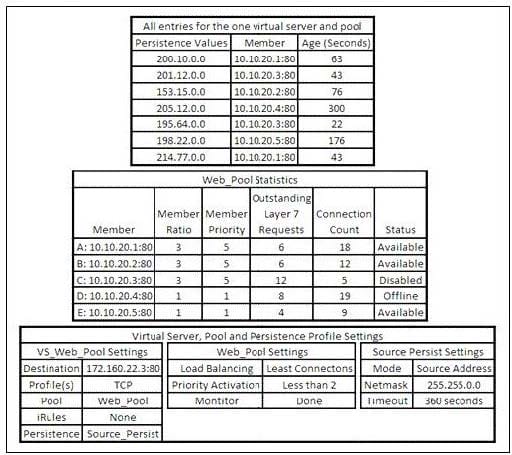

A virtual server is defined per the charts. The last five client connections were to members C, D, A, B, B. Given the conditions shown in the above graphic, if a client with IP address 205.12.45.52 opens a connection to the virtual server, which member will be used for the connection?

A. 172.16.20.1:80

B. 172.16.20.2:80

C. 172.16.20.3:80

D. 172.16.20.4:80

E. 172.16.20.5:80
