Choose the correct answer.

The area of a rectangle is calculated through analysis of its height and width:

How is this represented in a model?

A. Option A

B. Option B

C. Option C

D. Option D

E. Option E

Choose the correct answer.

A system engineer specializing in rigid body dynamics wants to model the laws of motion (LOM) so that they may be reused to analyze different types of systems. The LOM consist of the mathematical relations R1 and R2. shown here.

(R1)s=ut + (1/2)at2

(R2) v = u + at

How should the system engineer represent and relate LOM. R1, and R2 in SysML?

A. Create a block for each of LOM. R1 and R? Then create part properties in LOM that are typed by R1 and R?

B. Create an activity for each of LOM. R1, and R2. Then, create actions in LOM that are typed by R1 and R2.

C. Create a constraint block for each of LOM. R1. and R2 Then, create part properties in LOM that are typed by R1 and R2.

D. Create a constraint block for each of LOM. R1, and R2- Then, create constraint properties m LOM that are typed by R1 and R2.

Choose the correct answer.

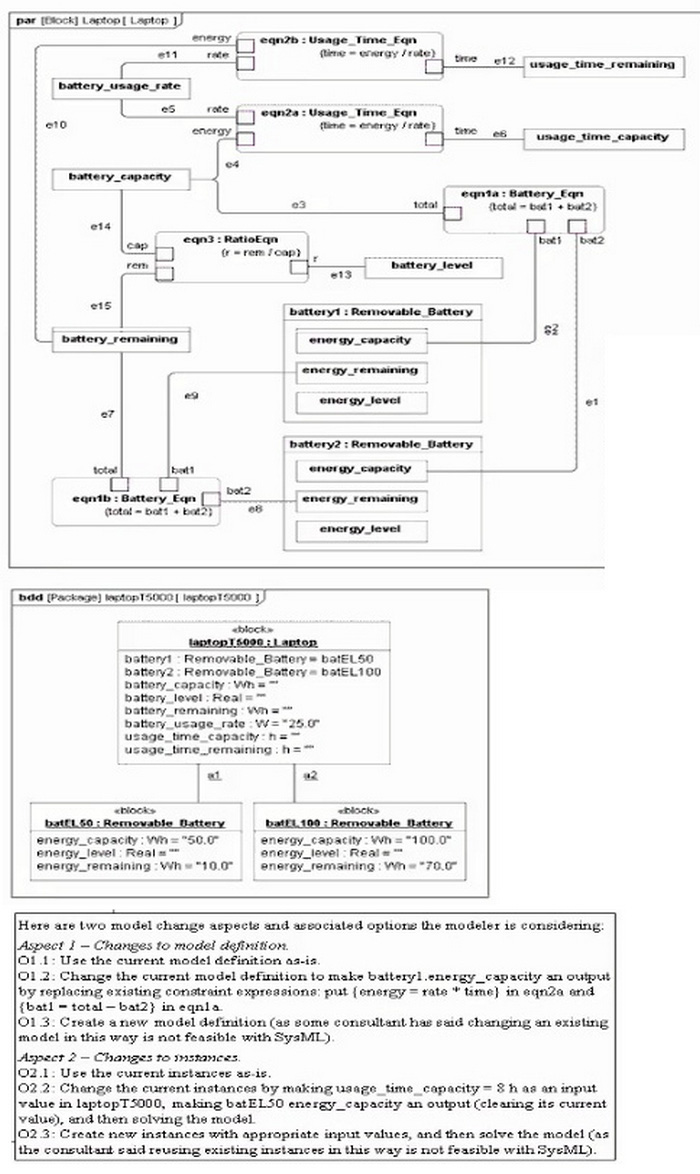

Given the following diagram:

Which diagram is correct?

A. Option A

B. Option B

C. Option C

D. Option D

Choose the correct answer.

Which stereotype depicts that an object node will replace existing tokens with newly arriving tokens when the specified upper limit is reached?

A. <>

B. <>

C. <>

D. No stereotype is needed in this case since it describes the default condition

Choose the correct answer

What does a «rate» applied to an activity edge specify?

A. a lower bound on the number of changes to an object's value per time Interval

B. a lower bound on the number of objects that will traverse the edge per time interval

C. the expected number of changes to an object's value per time interval.

D. the expected number of objects that traverse the edge per time interval

E. an upper bound on the number of changes to an object's value per time interval

F. an upper bound on the number of objects that will traverse the edge per time interval

Choose the correct answer.

Which SysML construct specifies a probability distribution to the values of a property such as a basic interval distribution between min and max?

A. a range property

B. an interval property

C. a probability property

D. a distributed property

Choose the correct answer.

Given a system for keeping birds away from airports One component, described by the following diagram directs audio signals at birds that approach a runway, its parts, as part properties, are typed by blocks.

A systems engineer has identified some blacks that type the pan properties, but as the design becomes more specific, the engineer discovers that these blocks exist in multiple variants. What modeling choice does the engineer face at this point?

A. whether to model part properties as (a) a library, or (b) a logical hierarchy

B. whether to model part properties as (a) a library or (b) a hierarchy of non-composite relationships

C. whether to model variants of blocks that type part properties as (a) explicit subclasses of the blocks, or (b) part-specific types.

D. whether to model variants of blocks that type part properties as (a) implicit subclasses of the blocks, or (b) part-specific types

Choose the correct answer

What is an effective and efficient approach to project modeling standards and conventions?

A. Every project should create its own domain specific profile to describe modeling standards and conventions

B. Organizations should create specific modeling standards and conventions to ensure modeling consistency across projects

C. The SysML specification alone is sufficient to describe modeling standards and conventions when the modeling tool has a proper implementation of SysML

D. The SysML specification and the modeling tool documentation are sufficient to describe modeling standards and conventions

Choose the correct answer.

What is a property that may be calculated by analysis of the model?

A. a derived property

B. an analysis property

C. a calculated property

D. an estimation property

E. a replacement property

Choose the correct answer.

Block 1 has a value property 'a' part 1. typed by Block! sends the message Ml If a?; otherwise it sends message M2.

Which diagram depicts this scenario?

A. Option A

B. Option B

C. Option C

D. Option D
