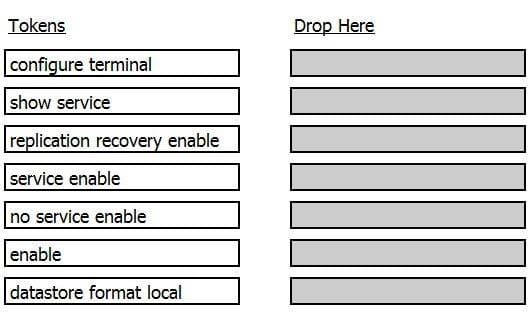

If performing a disaster recovery (DR) test, what commands and in what order do they need to be run?

Select and Place:

Granite Edge appliance supports which of the following protocols? (Select 2)

A. Fiber channel

B. iSCSI

C. MPIO

D. NFS

What are the default ports used between the Granite Edge and Granite Core on a Steelhead EX platform?

A. 7150-7154, 7170

B. 7950-7954, 7970

C. Granite uses the same default ports as the Steelhead WAN Optimization

D. 7750-7754, 7770

E. 7050-7050, 7070

When configuring high availability for Granite Edge, which of the following is true?

A. MPIO is enabled on a Steelhead EX appliance to achieve high availability.

B. A pair of Steelhead CX appliances act as active/standby peers.

C. Granite Edge does not support high availability.

D. A pair of Steelhead EX appliances act as active/active peers.

E. A pair of Steelhead EX appliances act as active/standby peers.

What are the two steps needed for peer replication configuration? (Select 2)

A. Configure role, password, and secondary Whitewater IP on the primary Whitewater appliance.

B. Configure role, password, and megastore ID on the primary Whitewater appliance.

C. Configure role, password, and primary Whitewater IP on the secondary Whitewater appliance.

D. Configure role, password, and megastore ID on the secondary Whitewater appliance.

On a NetApp Filer, which of the following licenses are required to integrate the FAS appliance with Granite appliance (including VSS consistent Snapshot functionality)? (Select 2)

A. SnapMirror License

B. FlexClone License

C. SnapDrive License

D. iSCSI License

E. SnapVault License

F. Snapshot License

Which of the following CLI commands would you run on a Windows Host (which has the RHSP plugin installed) to take an application consistent snapshot of Granite appliance attached LUN?

A. snap

B. diskshadow

C. snapshot

D. vss

E. volume

Granite appliance has deep snapshot integration with which vendors? (Select 3)

A. Hitachi Data Systems (HDS)

B. EMC

C. NetApp

D. Dell EqualLogic

E. 3PAR

Which Granite appliance components support high availability?

A. Granite Core

B. Granite Edge

C. Neither Granite Core or Granite Edge

D. Both Granite Core and Granite Edge

Which are some best practices for Granite appliance implementations? (Select 4)

A. Deploy Granite Core appliance on GigE network when possible.

B. Configure jumbo frames in your network infrastructure.

C. Segregate storage traffic from management traffic.

D. Recommend mutual CHAP authentication when possible.

E. Must use separate IP addresses for primary, aux. and eth0_x ports.
